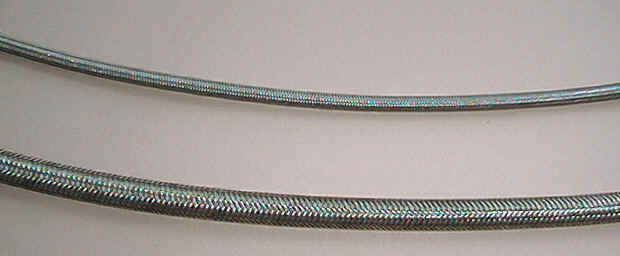

300 Series Smoothbore PTFE Hose

EXACT 300 hose has a PTFE inner tube, which is compatible with most automotive fluids, and the outer covering of braided stainless steel, enables the hose to withstand considerable internal pressure. 300 hose is recommended for use in brake, clutch, fuel, oil, water and breather systems.

Operating temperature range 56 Deg C to +232 Deg C

Part No. I.D. in mm O.D. in mm Min Bend Rad.

mm

Op. Press

PSI

Min Burst Press.

PSI

Weight
300-02 2.00 5.00 12.70 4,800  14,000 50gm/M
300-03 3.20 6.40 38.10 3,000 12,000 70gm/M
300-04 4.80 7.60 50.80 3,000 12,000 78gm/M
300-05 6.35 7.52 76.20 3,000 10,000 149gm/M
300-06 8.10 10.90 101.60 2,500 10,000 179gm/M
300-08 10.60 13.70 133.40 1,000 6,000 161gm/M
